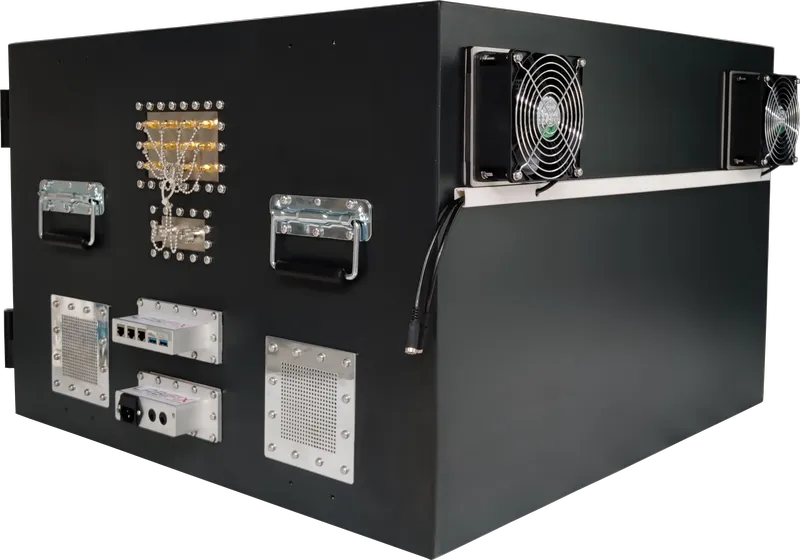

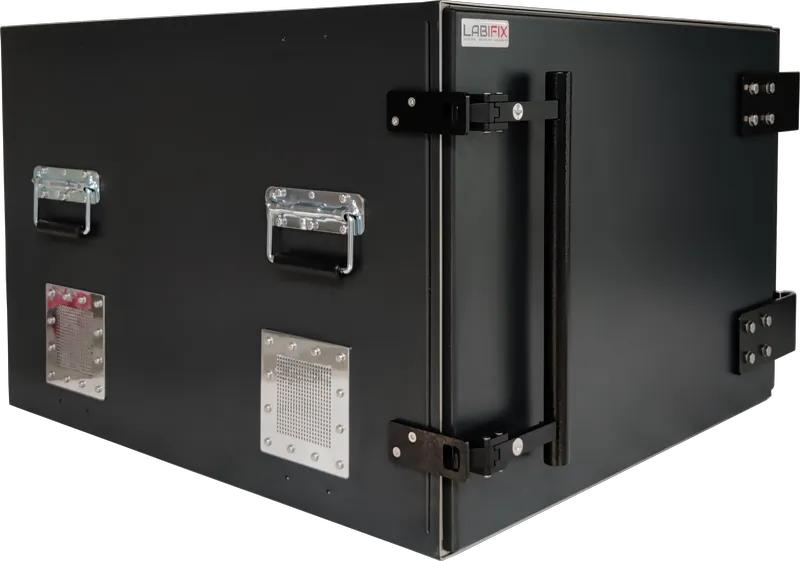

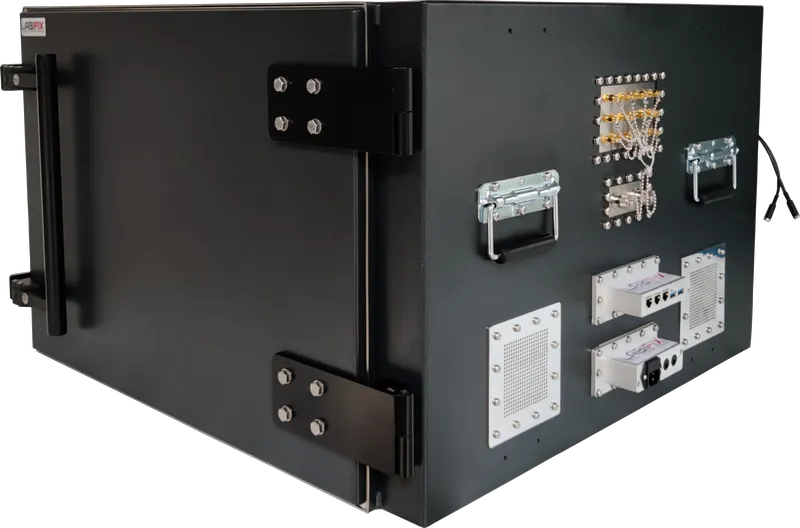

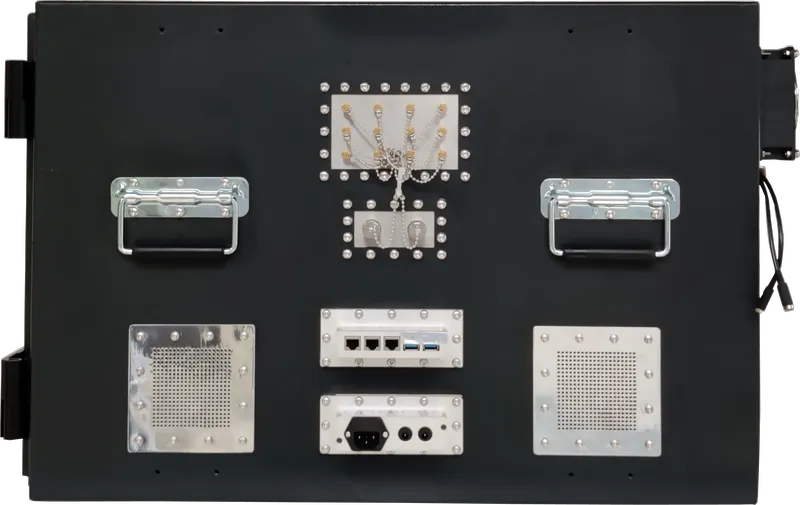

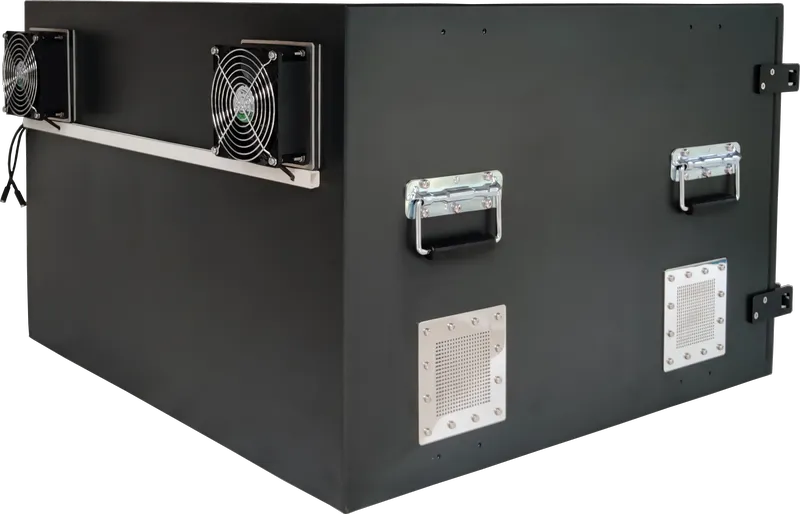

LBX5600 5G mmWave Test Enclosure LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX5600 RF Shield Box

LabiFix's LBX5600 is an RF Shielded Test Box for WLAN and Wireless Device Testing up to 12 GHz. The interior lining is lined with high-performance rf absorbing foam designed to deaden standing waves in the system and provide better isolation. In addition to blocking all wireless signals, it is equipped with shielded power filters to connect power to the box. A durable welded Enclosure enclosure is complemented by an EMI filter on the data ports. The excellent design makes its structure strong and the precision processing provides better isolation for your device under test and can be customized to your specific requirements by designing the I/O connections with any number of interchangeable plug-in RF modules.

Exterior (H x W x D)
20" (H) x 30" (W) x 30" (D)
Interior (H x W x D)
18" (H) x 28" (W) x 28" (D)
In Stock / Custom Built to Spec
Response in 2h
Call Consultation
Fast Turnaround • Custom I/O & Absorber • ISO 9001:2015
LBX5600 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
30"(EXTERIOR WIDTH)20"(EXTERIORHEIGHT)FRONT VIEW30"(EXTERIOR DEPTH)SIDE VIEW30"(EXTERIOR WIDTH)30"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 30" (W) × 20" (H) × 30" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX5600 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
28"(INTERIOR WIDTH)18"(INTERIORHEIGHT)INTERIOR FRONT VIEW28"(INTERIOR DEPTH)INTERIOR SIDE VIEW28"(INTERIOR WIDTH)28"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 28" (W) × 18" (H) × 28" (D)RF Pyramidal Microwave Absorber Lining Boundary
