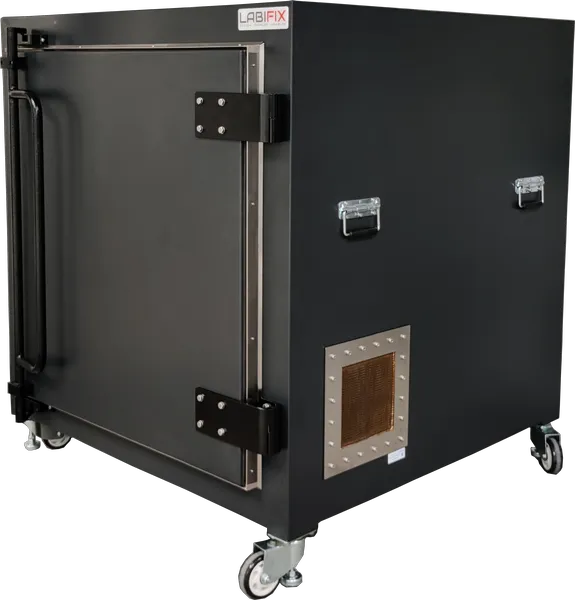

LBX9200 Modular MIMO OTA validation Shielded Enclosure LabiFix RF Shield Box - View 1 of 3
Industrial Spec View
IEEE-299 Certified
MIL-STD-285
CE Marked (RED)
RF SHIELD BOX

LBX9200 RF Shield Box

The LBX9200 Modular MIMO OTA validation Shielded Enclosure is a relatively inexpensive solution, but it has all of the features you need. It's also flexible, being able to host both medium size wireless devices and larger communications devices under test. Multiple RF ports and data transfer options along with AC power line filters are only some of its features. This amazing chamber is easy to move around thanks to its bench top or trolley mount. With all of these features, RF engineers will have what they need to ensure their test environment is stable.

Exterior (H x W x D)
51" (H) x 51" (W) x 51" (D)
Interior (H x W x D)
48" (H) x 48" (W) x 48" (D)
In Stock / Custom Built to Spec
Response in 2h
Call Consultation
Fast Turnaround • Custom I/O & Absorber • ISO 9001:2015
LBX9200 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
51"(EXTERIOR WIDTH)51"(EXTERIORHEIGHT)FRONT VIEW51"(EXTERIOR DEPTH)SIDE VIEW51"(EXTERIOR WIDTH)51"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 51" (W) × 51" (H) × 51" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX9200 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
48"(INTERIOR WIDTH)48"(INTERIORHEIGHT)INTERIOR FRONT VIEW48"(INTERIOR DEPTH)INTERIOR SIDE VIEW48"(INTERIOR WIDTH)48"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 48" (W) × 48" (H) × 48" (D)RF Pyramidal Microwave Absorber Lining Boundary
