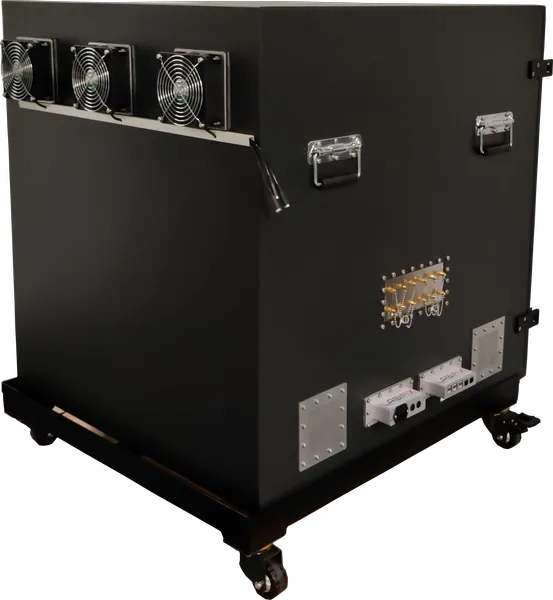

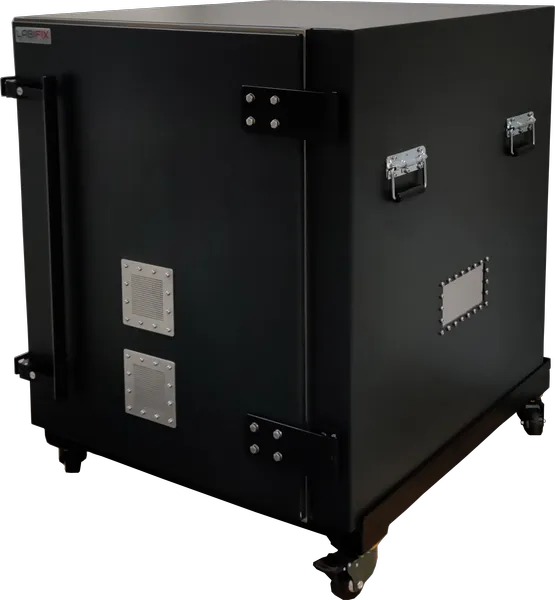

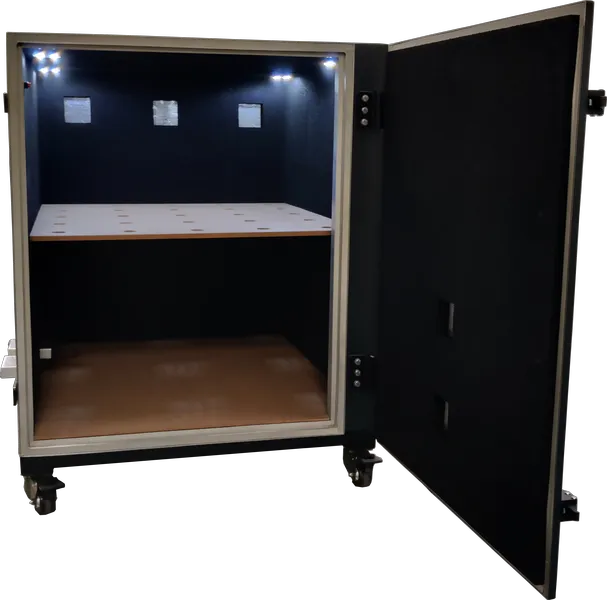

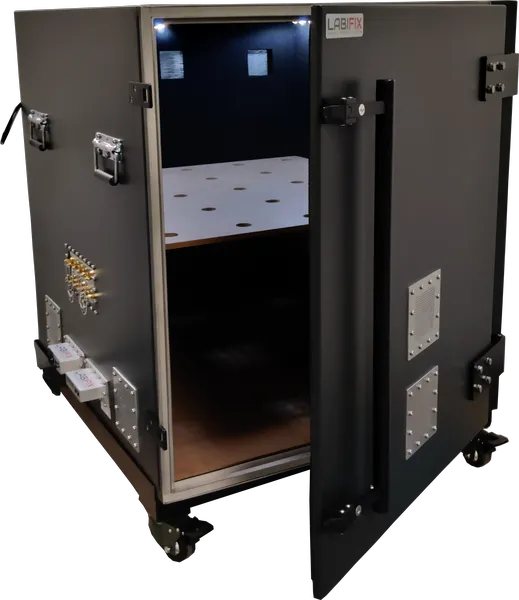

LBX9100 NFC and RFID proximity Testing LabiFix RF Shield Box - View 1 of 5
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX9100 RF Shield Box

The LBX9100 RF Shielded Test Enclosure is ideal for testing and measuring wireless, Radio Frequency (RF) communication devices. Furthermore, the test enclosure can be easily moved around on heavy duty caster wheels, making this product suitable for any testing application. Furthermore, the pyramidal RF absorber dampens unwanted signals. Despite its spaciousness, the unit offers a high shielding effectiveness of >100dB, allowing larger devices to be tested. A honeycomb air vent ensures that the device under test (DUT) does not get overheated and that proper air circulation is achieved.

Exterior (H x W x D)
34" (H) x 31" (W) x 34" (D)
Interior (H x W x D)
32" (H) x 29" (W) x 32" (D)
In Stock / Custom Built to Spec
Response in 2h
Call Consultation
Fast Turnaround • Custom I/O & Absorber • ISO 9001:2015
LBX9100 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
31"(EXTERIOR WIDTH)34"(EXTERIORHEIGHT)FRONT VIEW34"(EXTERIOR DEPTH)SIDE VIEW31"(EXTERIOR WIDTH)34"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 31" (W) × 34" (H) × 34" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX9100 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
29"(INTERIOR WIDTH)32"(INTERIORHEIGHT)INTERIOR FRONT VIEW32"(INTERIOR DEPTH)INTERIOR SIDE VIEW29"(INTERIOR WIDTH)32"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 29" (W) × 32" (H) × 32" (D)RF Pyramidal Microwave Absorber Lining Boundary
