HomeProductsLBX4070
LBX4070 5G mmWave Test Enclosure LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX4070 RF Shield Box

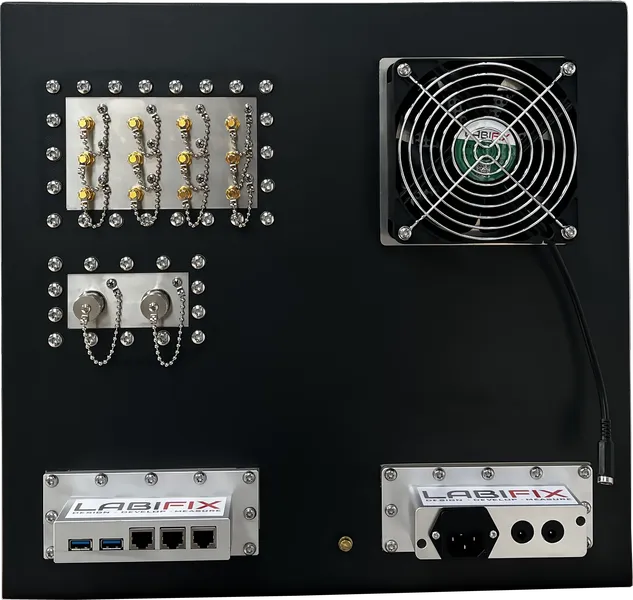

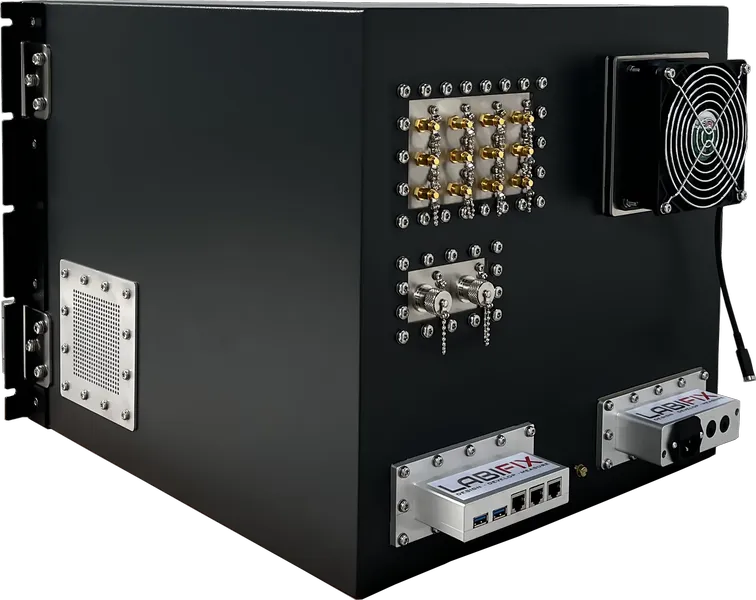

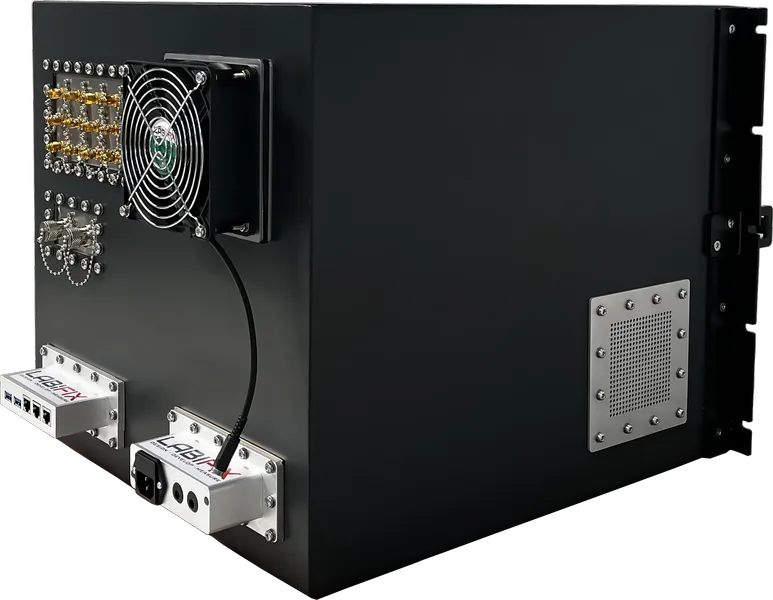

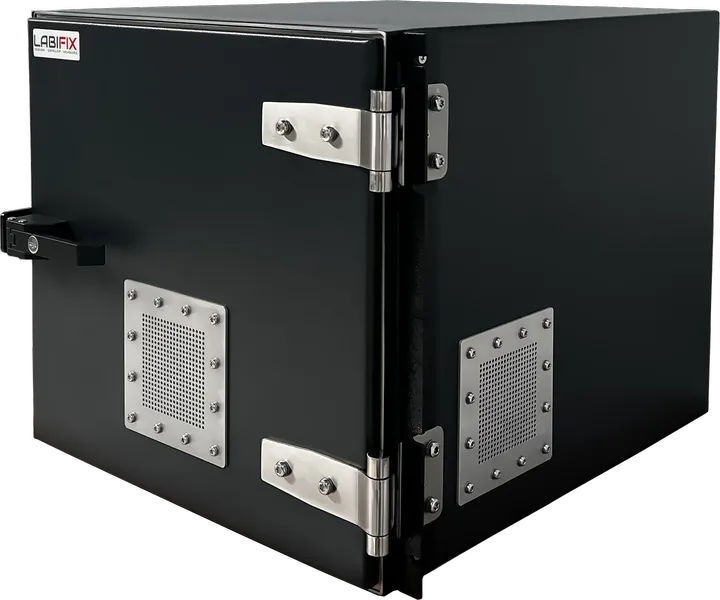

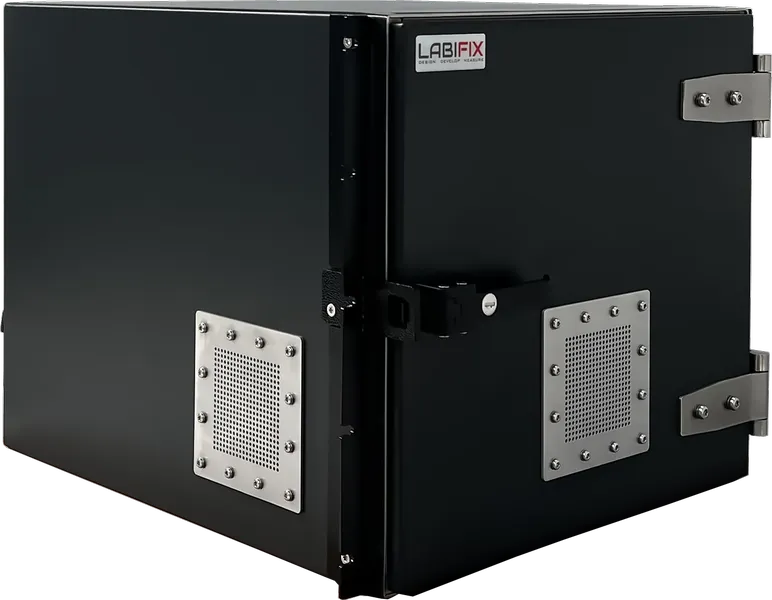

LBX4070 Wifi Test Box is designed to isolate and shield sensitive electronic devices from outside interference, making it ideal for wireless device testing purposes. Its rugged Enclosure construction and heavy duty hinges ensure it will last for years of use. High quality RF absorber materials, as well as various IO RF connectors, data ports, and power options, help dampen the signal inside the RF chamber. This box can be customized for various requirements. The RF box is ideal for engineers that need an inexpensive manual test environment to isolate their device from outside interference during each validation cycle.

Exterior (H x W x D)
16" (H) x 17" (W) x 22" (D)
Interior (H x W x D)
14" (H) x 15" (W) x 20" (D)
In Stock / Custom Built to Spec
Response in 2h
Call Consultation
Fast Turnaround • Custom I/O & Absorber • ISO 9001:2015
LBX4070 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
17"(EXTERIOR WIDTH)16"(EXTERIORHEIGHT)FRONT VIEW22"(EXTERIOR DEPTH)SIDE VIEW17"(EXTERIOR WIDTH)22"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 17" (W) × 16" (H) × 22" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX4070 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
15"(INTERIOR WIDTH)14"(INTERIORHEIGHT)INTERIOR FRONT VIEW20"(INTERIOR DEPTH)INTERIOR SIDE VIEW15"(INTERIOR WIDTH)20"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 15" (W) × 14" (H) × 20" (D)RF Pyramidal Microwave Absorber Lining Boundary
