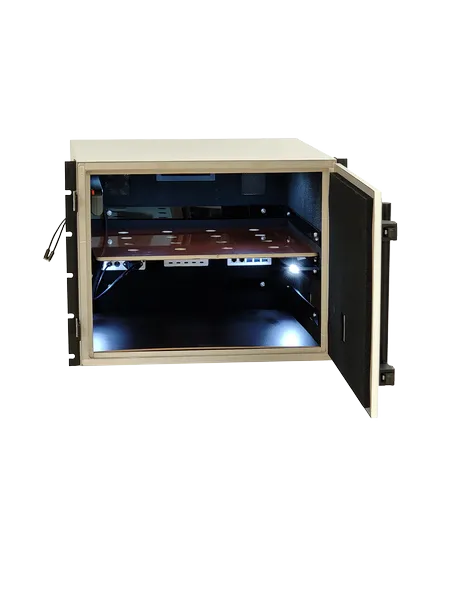

LBX5720 5G mmWave Enclosure LabiFix RF Shield Box - View 1 of 6
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX5720 RF Shield Box

LBX5720 is a practical choice when the test requires reliable RF isolation together with usable connectivity. The enclosure can be configured with High Performance RF Absorber lining and Rugged Welded Construction, depending on the requirements of the application. It is well suited to controlled RF validation, development and production test workflows where repeatability matters. As a RF shielded enclosure, LBX5720 can be configured around the DUT and the way it needs to be tested.

Exterior (H x W x D)
17.5" (H) x 22" (W) x 22.5" (D)
Interior (H x W x D)
15" (H) x 20" (W) x 20" (D)
In Stock / Custom Built to Spec
Response in 2h
Call Consultation
Fast Turnaround • Custom I/O & Absorber • ISO 9001:2015
LBX5720 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
22"(EXTERIOR WIDTH)17.5"(EXTERIORHEIGHT)FRONT VIEW22.5"(EXTERIOR DEPTH)SIDE VIEW22"(EXTERIOR WIDTH)22.5"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 22" (W) × 17.5" (H) × 22.5" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX5720 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
20"(INTERIOR WIDTH)15"(INTERIORHEIGHT)INTERIOR FRONT VIEW20"(INTERIOR DEPTH)INTERIOR SIDE VIEW20"(INTERIOR WIDTH)20"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 20" (W) × 15" (H) × 20" (D)RF Pyramidal Microwave Absorber Lining Boundary
