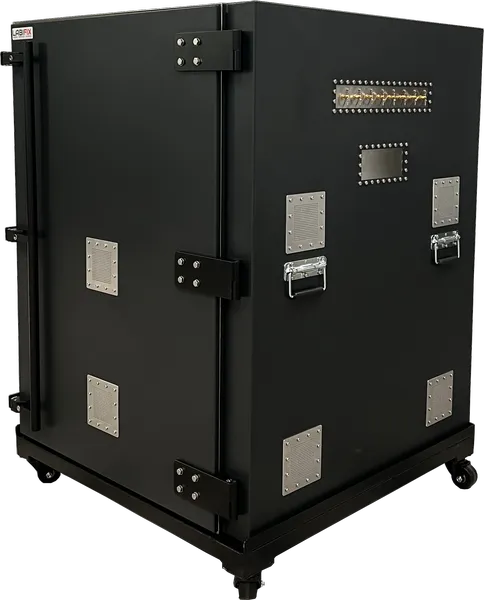

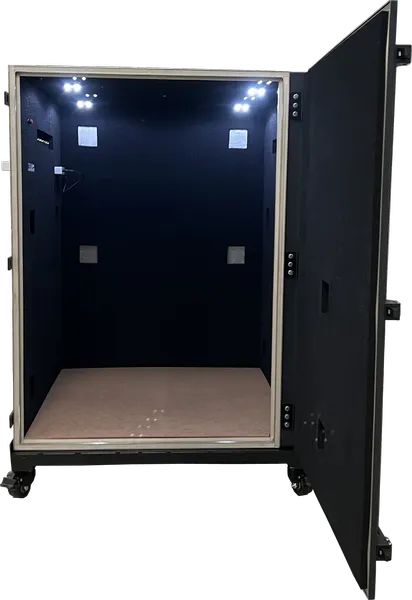

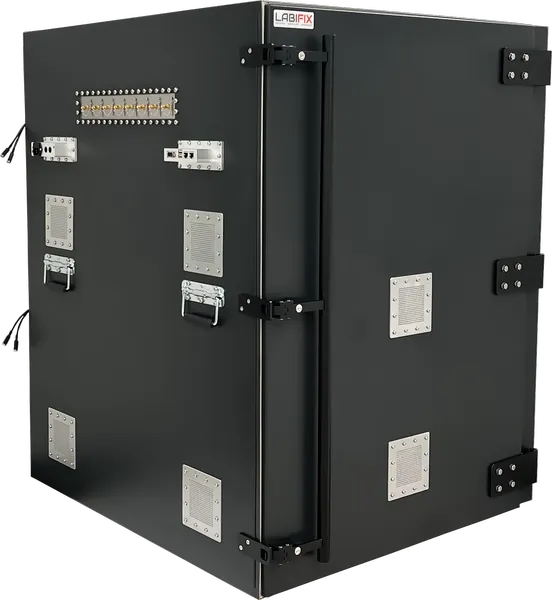

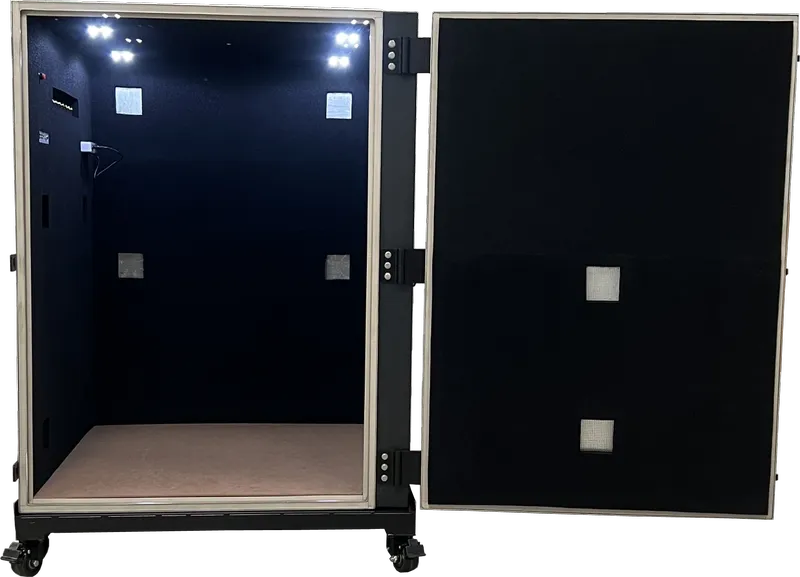

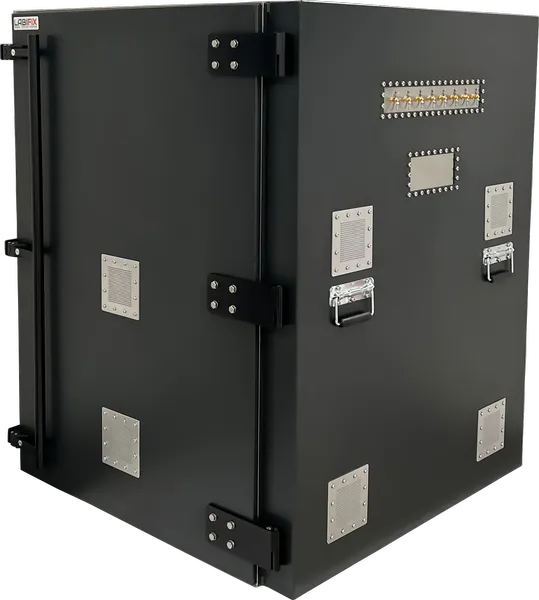

LBX9300 RF Test chamber LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX9300 RF Shield Box

The LBX9300 RF shielded enclosure from LabiFix that operates from 100MHz to 12GHz. It can be used to measure RF electronic modules, Wifi devices, or antennas that must be shielded against interfering RF signals. Due to its Enclosure construction, this RF enclosure provides shielding of over 95 dB even when exposed to environments with high RF interference. A spacious interior allows large equipment to be placed inside the enclosure. Additionally, it comes with RF ports like SMA connectors, N type, and data ports, as well as a powerline option to connect devices inside the chamber.

Exterior (H x W x D)
45" (H) x 35" (W) x 35" (D)
Interior (H x W x D)
43" (H) x 33" (W) x 33" (D)
In Stock / Custom Built to Spec
Response in 2h
Call Consultation
Fast Turnaround • Custom I/O & Absorber • ISO 9001:2015
LBX9300 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
35"(EXTERIOR WIDTH)45"(EXTERIORHEIGHT)FRONT VIEW35"(EXTERIOR DEPTH)SIDE VIEW35"(EXTERIOR WIDTH)35"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 35" (W) × 45" (H) × 35" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX9300 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
33"(INTERIOR WIDTH)43"(INTERIORHEIGHT)INTERIOR FRONT VIEW33"(INTERIOR DEPTH)INTERIOR SIDE VIEW33"(INTERIOR WIDTH)33"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 33" (W) × 43" (H) × 33" (D)RF Pyramidal Microwave Absorber Lining Boundary
