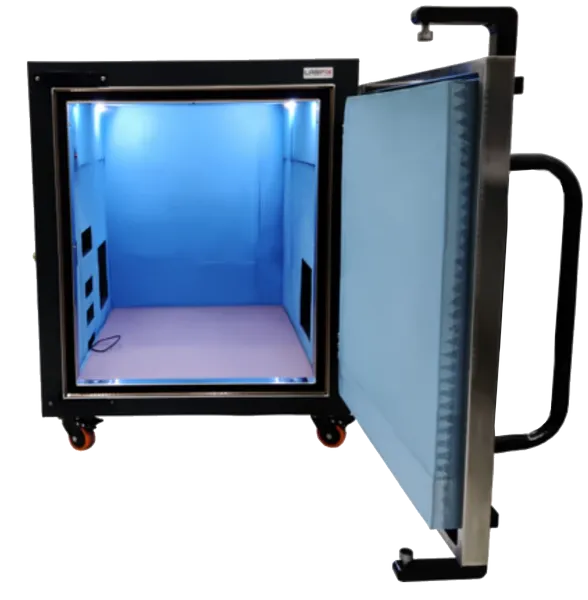

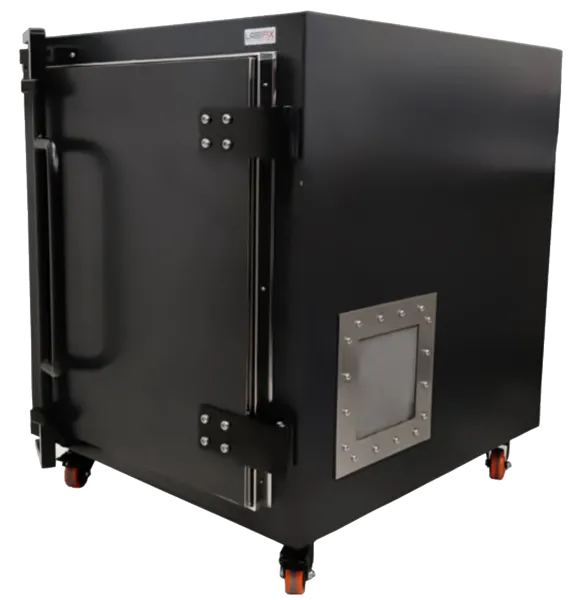

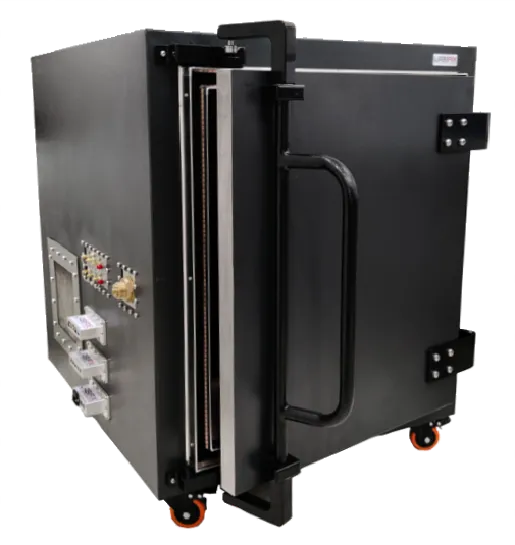

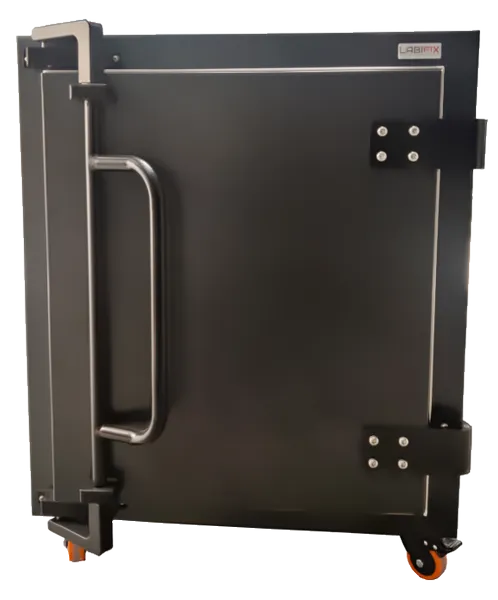

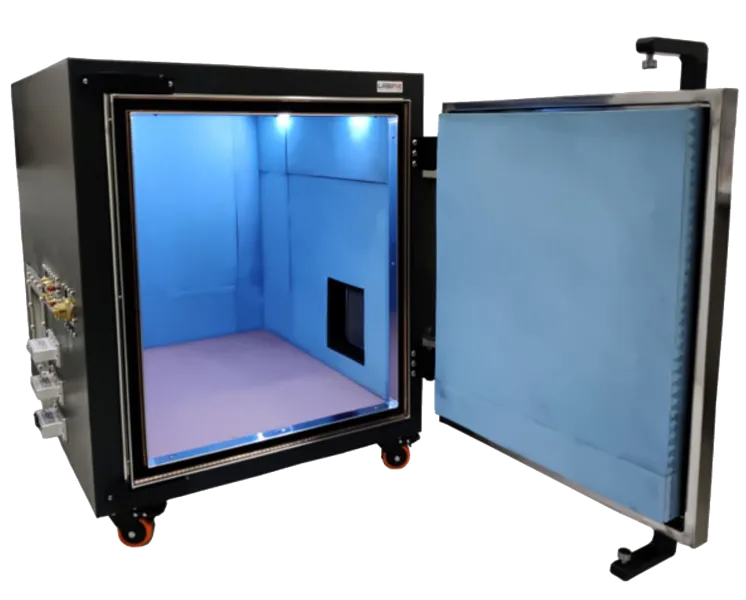

LBX9000 5G Sub-6 GHz and mmWave throughput Testing LabiFix RF Shield Box - View 1 of 7
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX9000 RF Shield Box

The LBX9000 RF Shielded Test Enclosure is the perfect solution for testing and measuring wireless, Radio Frequency (RF) communication devices. Also with heavy duty caster wheels that allow easy movement of the test enclosure, this product is perfect for any Test applications. Additionally, the pyramidal RF absorber helps dampen any unwanted signals. The spaciousness of the unit allows for larger devices to be tested while still providing high shielding effectiveness >100dB. For proper air circulation and to avoid heating of the device under test (DUT) the honeycomb air vent provides the perfect ventilation.

Exterior (H x W x D)
34" (H) x 31" (W) x 34" (D)
Interior (H x W x D)
29" (H) x 27" (W) x 29" (D)
In Stock / Custom Built to Spec
Response in 2h
Call Consultation
Fast Turnaround • Custom I/O & Absorber • ISO 9001:2015
LBX9000 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
31"(EXTERIOR WIDTH)34"(EXTERIORHEIGHT)FRONT VIEW34"(EXTERIOR DEPTH)SIDE VIEW31"(EXTERIOR WIDTH)34"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 31" (W) × 34" (H) × 34" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX9000 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
27"(INTERIOR WIDTH)29"(INTERIORHEIGHT)INTERIOR FRONT VIEW29"(INTERIOR DEPTH)INTERIOR SIDE VIEW27"(INTERIOR WIDTH)29"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 27" (W) × 29" (H) × 29" (D)RF Pyramidal Microwave Absorber Lining Boundary
