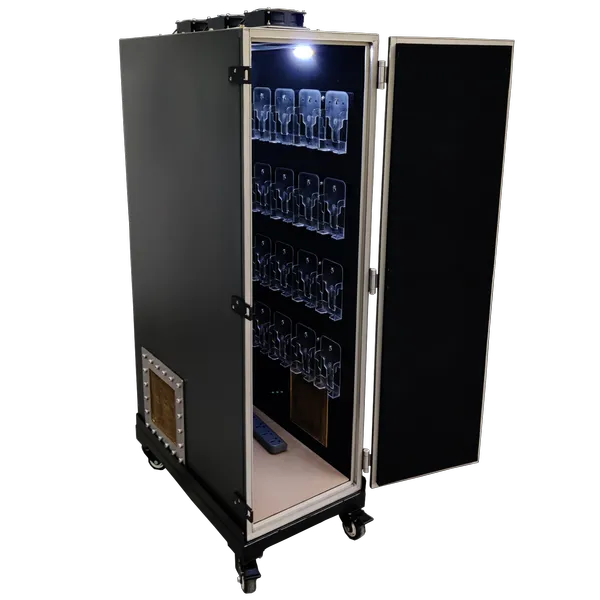

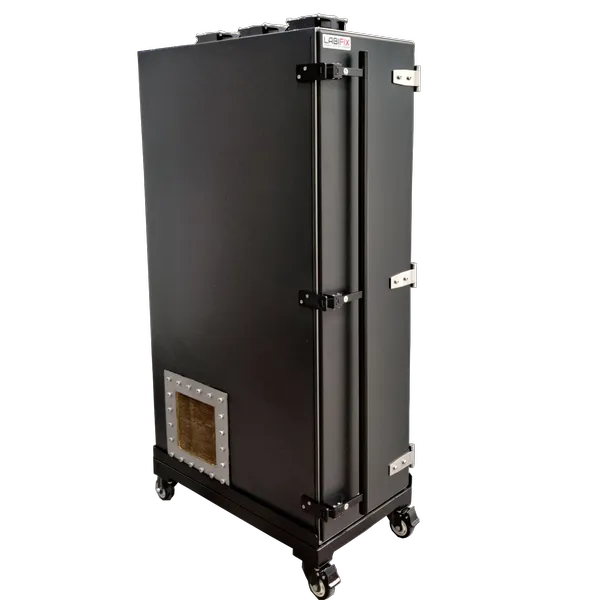

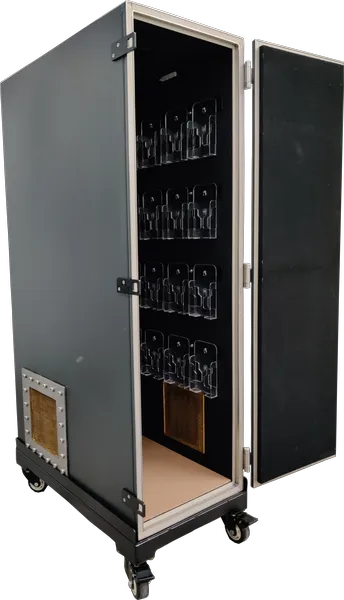

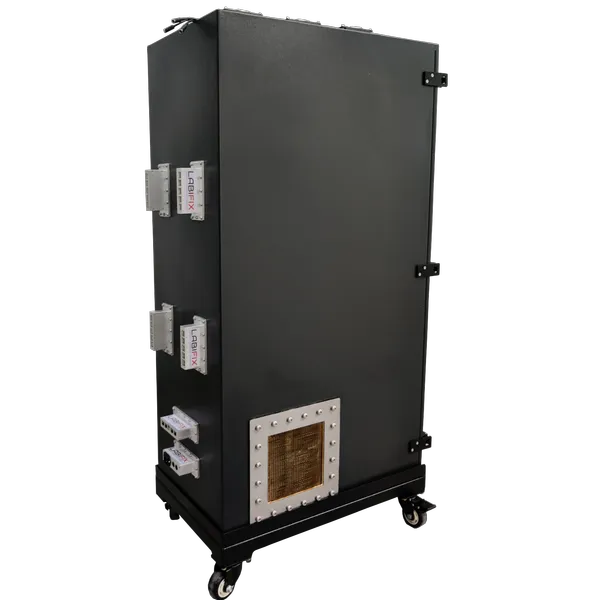

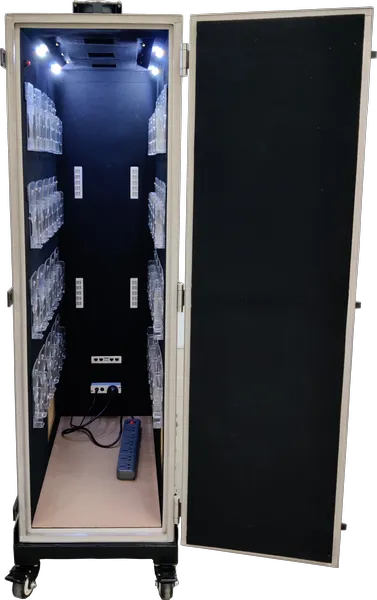

LBX6200 MIMO Efficiency Evaluation Testing Shield box LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX6200 RF Shield Box

LAX6200 high-performance RF shielded enclosure designed for use in mobile test labs, research and development environments, and a wide range of industrial applications which is designed to provide superior shielding performance at an affordable price. Plus, Fiber optic insertion waveguide is designed to provide a connection through fiber optic cables into a shielded enclosure while maintaining the RF shielded enclosure's shielding. Our heavy duty hinges and caster wheels are tough, durable, and designed to withstand the wear-and-tear of everyday use. They are fitted with a locking mechanism that is both easy to use and built to last, as well as a superior latch system that provides maximum shielding effectiveness.

Exterior (H x W x D)
51" (H) x 17" (W) x 28" (D)
Interior (H x W x D)
49" (H) x 15" (W) x 26" (D)
In Stock / Custom Built to Spec
Response in 2h
Call Consultation
Fast Turnaround • Custom I/O & Absorber • ISO 9001:2015
LBX6200 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
17"(EXTERIOR WIDTH)51"(EXTERIORHEIGHT)FRONT VIEW28"(EXTERIOR DEPTH)SIDE VIEW17"(EXTERIOR WIDTH)28"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 17" (W) × 51" (H) × 28" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX6200 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
15"(INTERIOR WIDTH)49"(INTERIORHEIGHT)INTERIOR FRONT VIEW26"(INTERIOR DEPTH)INTERIOR SIDE VIEW15"(INTERIOR WIDTH)26"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 15" (W) × 49" (H) × 26" (D)RF Pyramidal Microwave Absorber Lining Boundary
