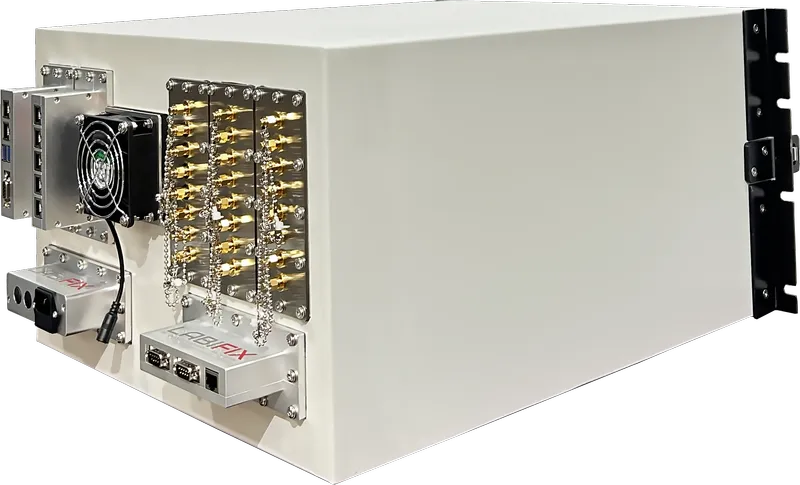

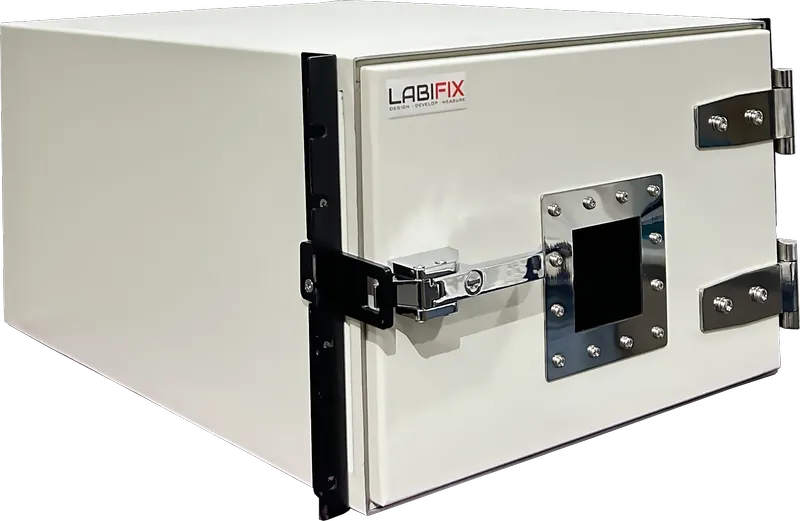

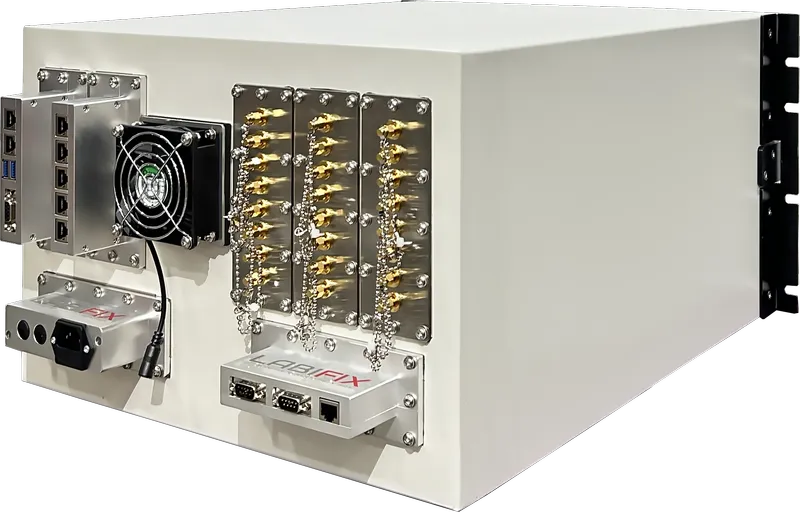

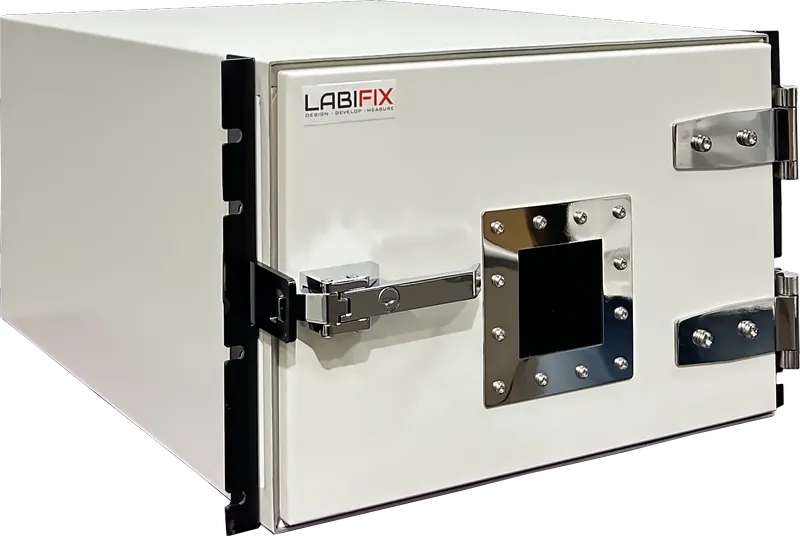

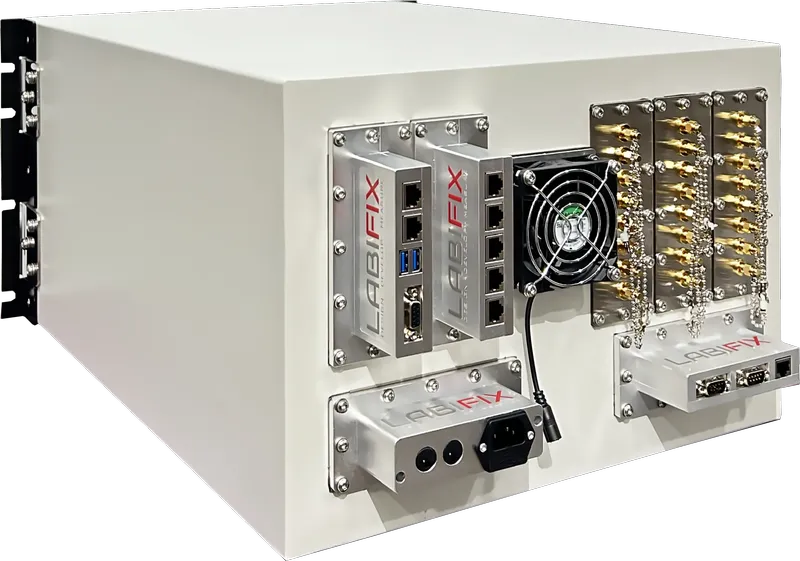

LBX2001 Compact RF Test box LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX2001 RF Shield Box

This LBX2001 RF shielded enclosure offers consistent performance across applications. It isolates the DUT from external signals, ensuring clean data. A compact shielded test box that engineers use for various wireless protocols. Reliable, affordable, and easy to integrate. You can configure it with different connectors, airflow options, and filtering to match your test setup

Exterior (H x W x D)
12" (H) x 17" (W) x 22" (D)
Interior (H x W x D)
10" (H) x 15" (W) x 20" (D)
In Stock / Custom Built to Spec
Response in 2h
Call Consultation
Fast Turnaround • Custom I/O & Absorber • ISO 9001:2015
LBX2001 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
17"(EXTERIOR WIDTH)12"(EXTERIORHEIGHT)FRONT VIEW22"(EXTERIOR DEPTH)SIDE VIEW17"(EXTERIOR WIDTH)22"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 17" (W) × 12" (H) × 22" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX2001 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
15"(INTERIOR WIDTH)10"(INTERIORHEIGHT)INTERIOR FRONT VIEW20"(INTERIOR DEPTH)INTERIOR SIDE VIEW15"(INTERIOR WIDTH)20"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 15" (W) × 10" (H) × 20" (D)RF Pyramidal Microwave Absorber Lining Boundary
