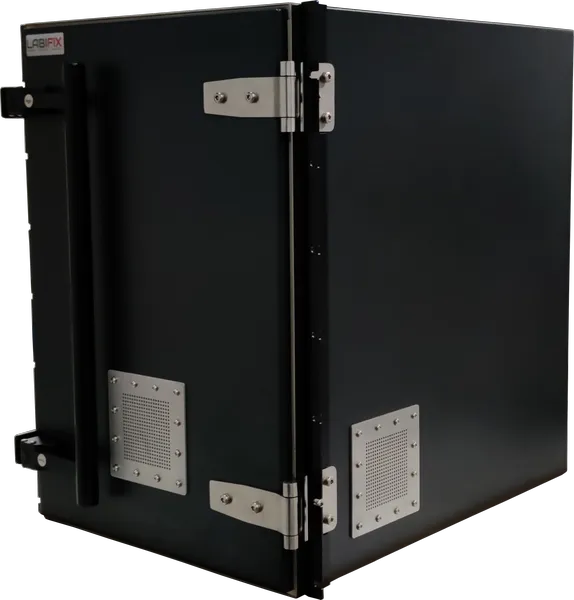

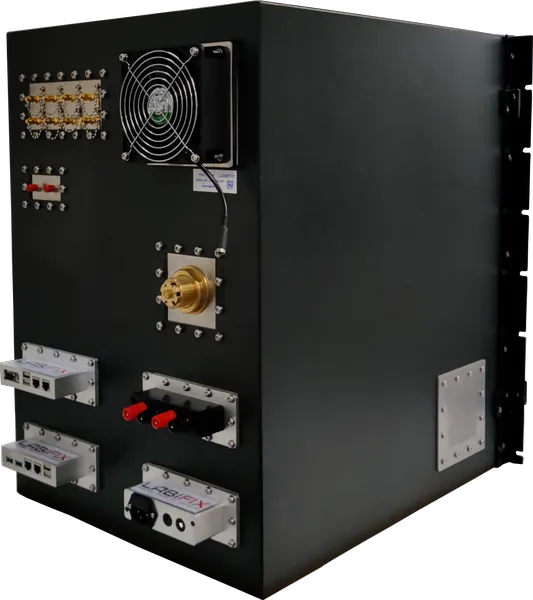

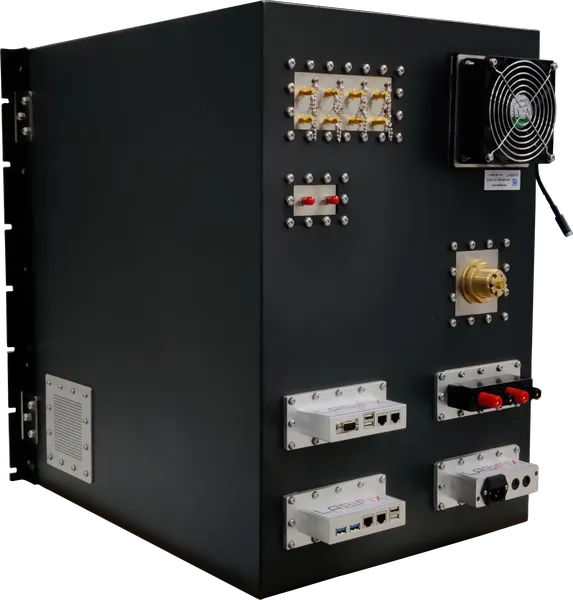

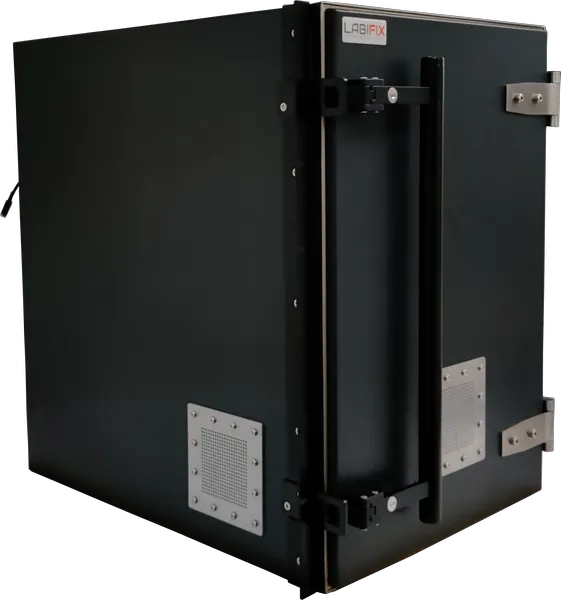

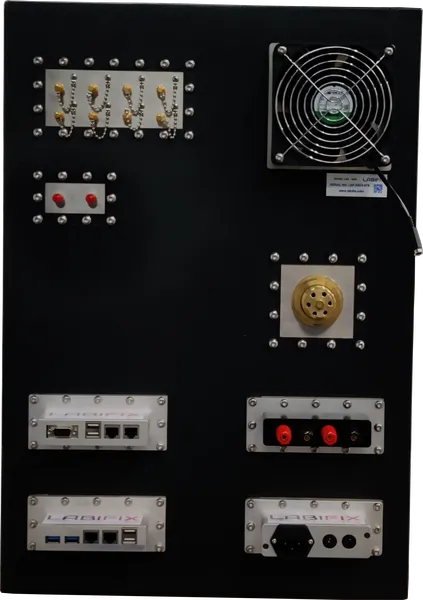

LBX4020 Component-level Shielding evaluation LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX4020 RF Shield Box

LBX4020 high-performance RF shielded enclosure for Wi-Max, GNSS and Bluetooth supports Operating Frequency Range from 800MHz to 12GHz which is Completely Customizable to suit the wireless device testing specified requirement. The RF Shield isolation box is a rugged welded Enclosure construction that provides superior RF Isolation >90dB powered by AC and DC Power line filters with a standard 1 year warranty. With waveguide for fiber insertion and a variety of data ports such as Filtered USB 2.0, USB 3.0, and HDMI, audio and video connections, you will have all the necessary features to ensure your wireless device testing is working flawlessly.

Exterior (H x W x D)
24" (H) x 17" (W) x 22" (D)
Interior (H x W x D)
22" (H) x 15" (W) x 20" (D)
In Stock / Custom Built to Spec
Response in 2h
Call Consultation
Fast Turnaround • Custom I/O & Absorber • ISO 9001:2015
LBX4020 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
17"(EXTERIOR WIDTH)24"(EXTERIORHEIGHT)FRONT VIEW22"(EXTERIOR DEPTH)SIDE VIEW17"(EXTERIOR WIDTH)22"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 17" (W) × 24" (H) × 22" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX4020 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
15"(INTERIOR WIDTH)22"(INTERIORHEIGHT)INTERIOR FRONT VIEW20"(INTERIOR DEPTH)INTERIOR SIDE VIEW15"(INTERIOR WIDTH)20"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 15" (W) × 22" (H) × 20" (D)RF Pyramidal Microwave Absorber Lining Boundary
