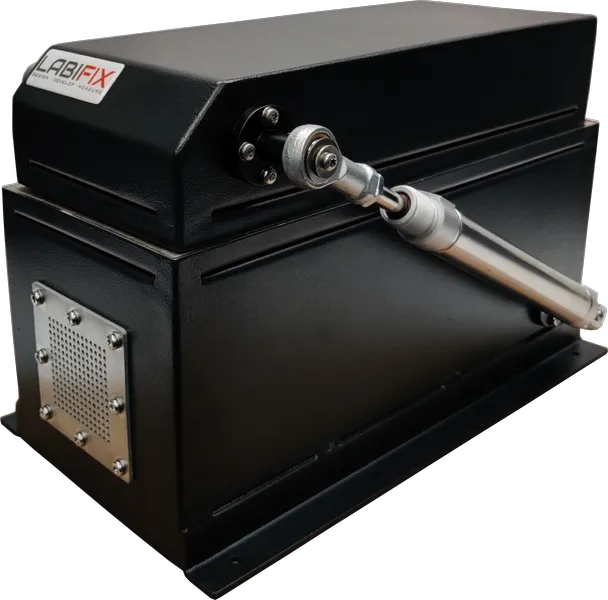

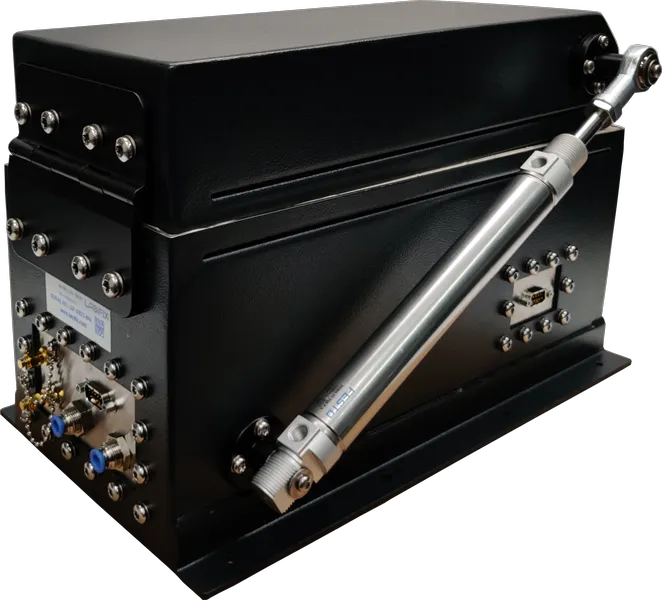

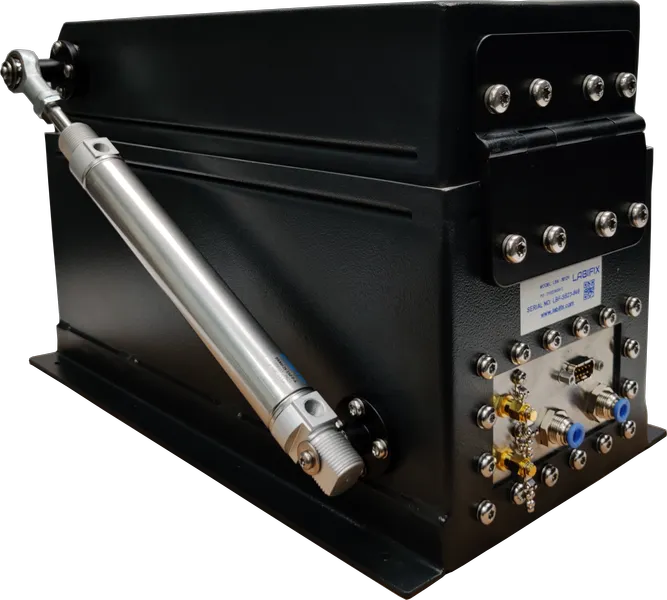

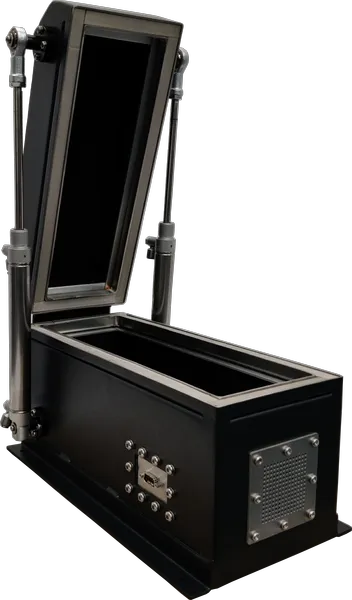

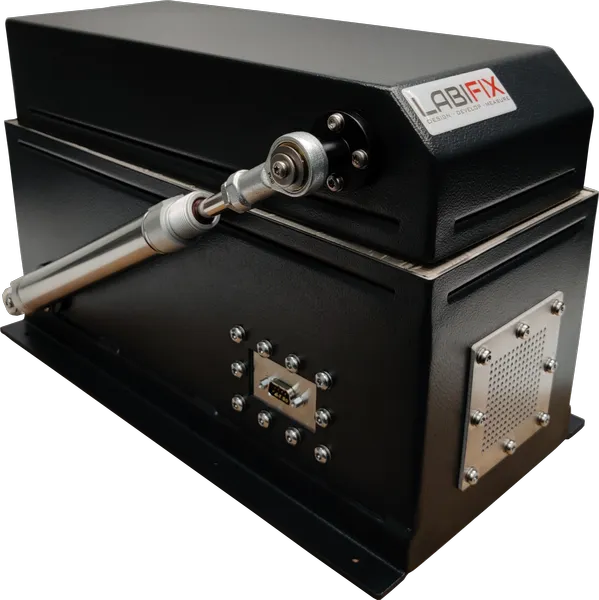

LBX3012 Pneumatic RF Shield Box LabiFix RF Shield Box - View 1 of 7
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX3012 RF Shield Box

LBX3012 Pneumatic RF Shielding box, When it comes to Shielding your wireless electronics from RF interference, there is no better option than a pneumatic RF shield box. These boxes are designed to automatically and programmable control, making them perfect for production environments. Additionally RF wireless device testing can all be automated thanks to the pneumatic mechanisms built into the shielding box. The pneumatic RF shielding box also comes equipped with buttons to open and close the door or lid, making it even easier to use. So if you are looking for the best way to Shield your electronics from RF interference, be sure to check out a pneumatic RF shielding box

Exterior (H x W x D)
10" (H) x 08" (W) x 15" (D)
Interior (H x W x D)
08" (H) x 06" (W) x 14" (D)
In Stock / Custom Built to Spec
Response in 2h
Call Consultation
Fast Turnaround • Custom I/O & Absorber • ISO 9001:2015
LBX3012 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
8"(EXTERIOR WIDTH)10"(EXTERIORHEIGHT)FRONT VIEW15"(EXTERIOR DEPTH)SIDE VIEW8"(EXTERIOR WIDTH)15"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 8" (W) × 10" (H) × 15" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX3012 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
6"(INTERIOR WIDTH)8"(INTERIORHEIGHT)INTERIOR FRONT VIEW14"(INTERIOR DEPTH)INTERIOR SIDE VIEW6"(INTERIOR WIDTH)14"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 6" (W) × 8" (H) × 14" (D)RF Pyramidal Microwave Absorber Lining Boundary
