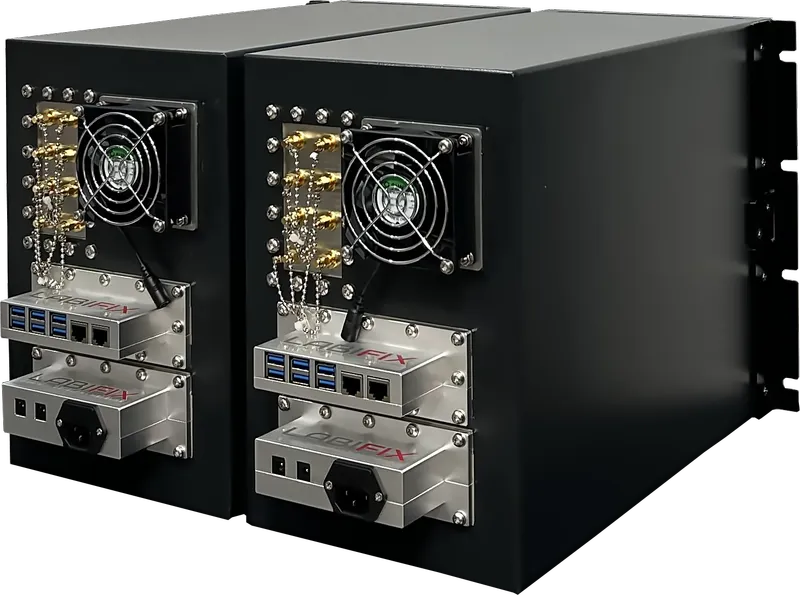

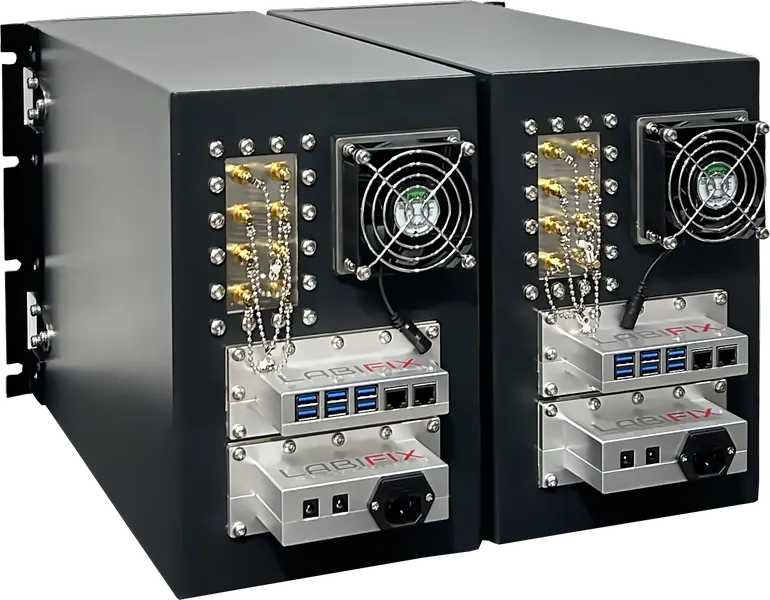

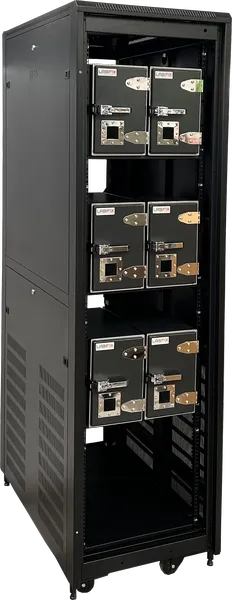

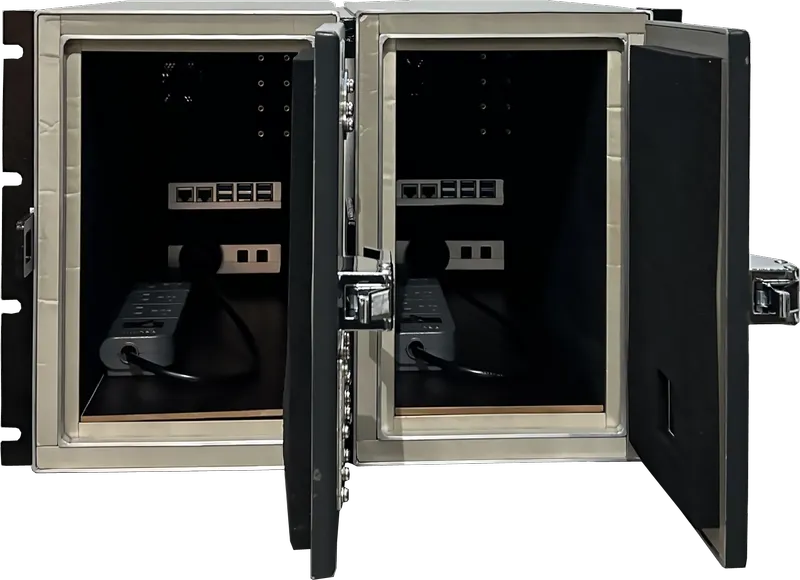

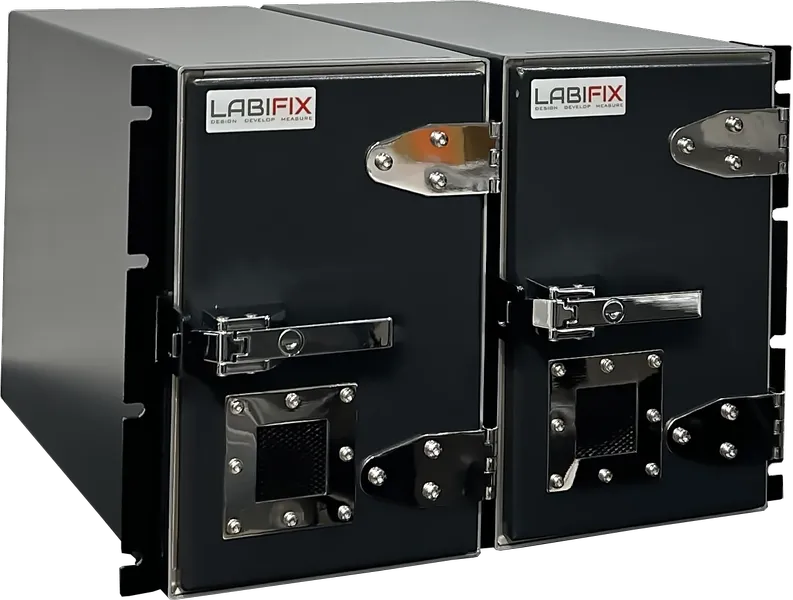

LBX1700 RF Shielded cabinet LabiFix RF Shield Box - View 1 of 6
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX1700 RF Shield Box

LBX1700 RF Shield box is well suited for all types of tests, such as Cellular, Bluetooth, Zigbee, Wimax and other wireless device under test. With various IO RF connectors, data port, and power options used to test devices in both product research and development and production efficiency enhancement without limitations, plus superior RF absorber materials that help reduce the signal inside the RF Box. This box is ideal for engineers to create an inexpensive manual test environment with each validation needs to isolate their device from outside interference.

Exterior (H x W x D)
12" (H) x 8.5" (W) x 18" (D)
Interior (H x W x D)
10" (H) x 6.5" (W) x 16" (D)
In Stock / Custom Built to Spec
Response in 2h
Call Consultation
Fast Turnaround • Custom I/O & Absorber • ISO 9001:2015
LBX1700 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
8.5"(EXTERIOR WIDTH)12"(EXTERIORHEIGHT)FRONT VIEW18"(EXTERIOR DEPTH)SIDE VIEW8.5"(EXTERIOR WIDTH)18"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 8.5" (W) × 12" (H) × 18" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX1700 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
6.5"(INTERIOR WIDTH)10"(INTERIORHEIGHT)INTERIOR FRONT VIEW16"(INTERIOR DEPTH)INTERIOR SIDE VIEW6.5"(INTERIOR WIDTH)16"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 6.5" (W) × 10" (H) × 16" (D)RF Pyramidal Microwave Absorber Lining Boundary
