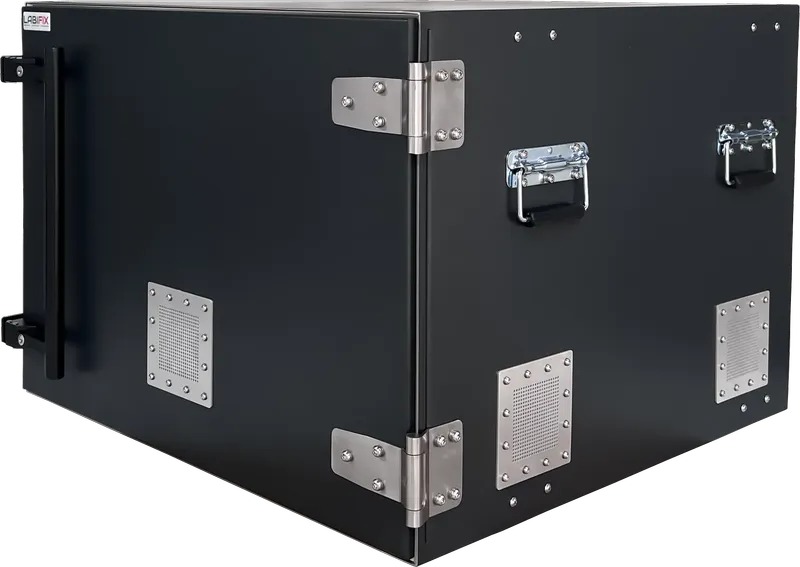

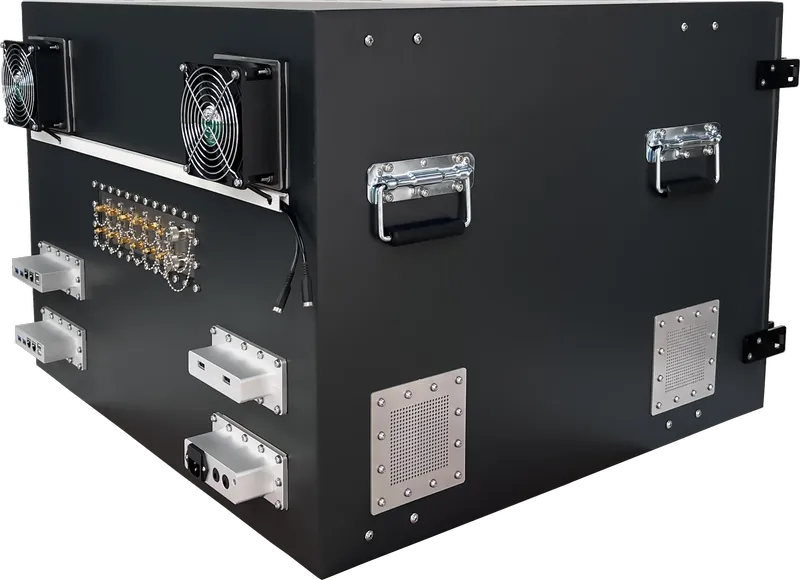

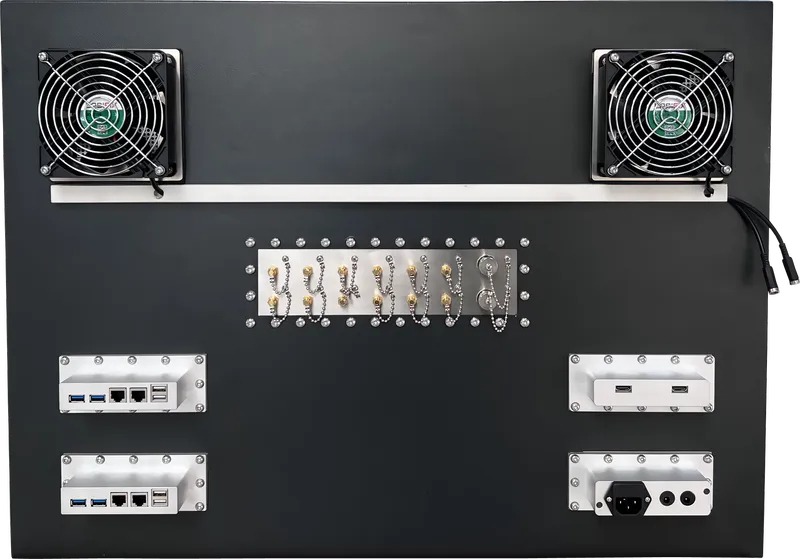

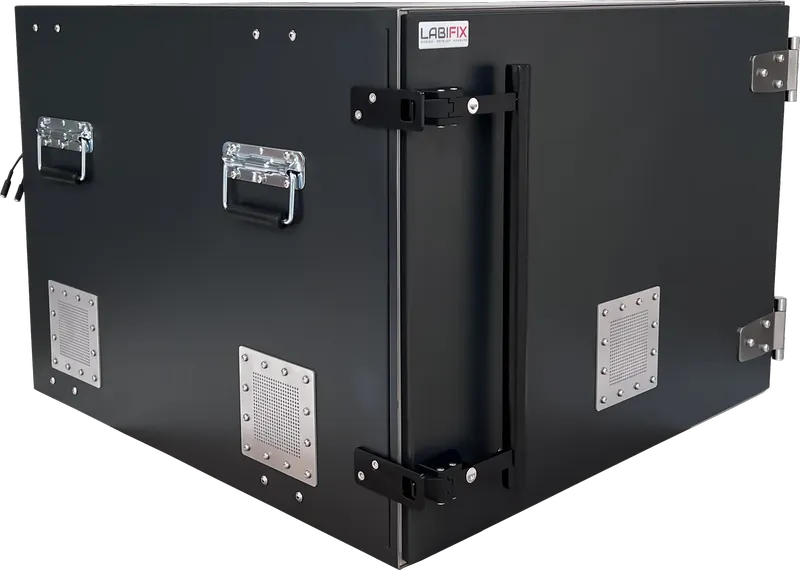

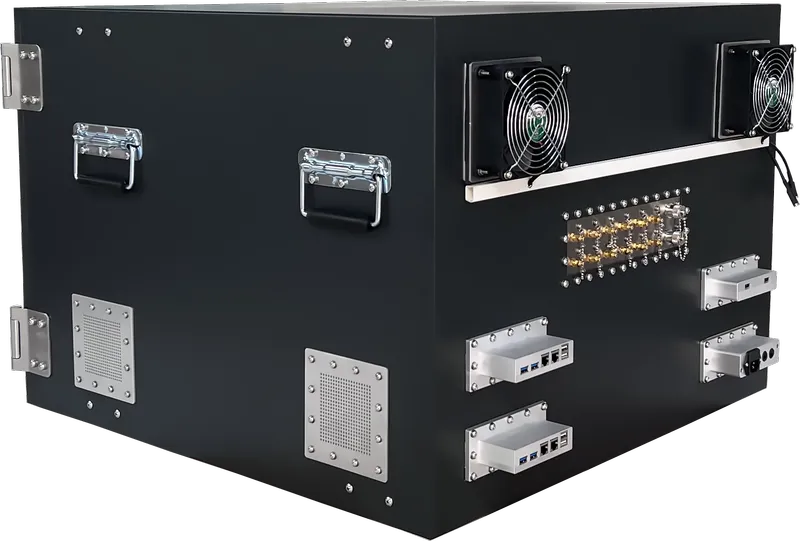

LBX5700 5G OTA chamber LabiFix RF Shield Box - View 1 of 8
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX5700 RF Shield Box

LBX5700 RF Shield box designed specifically for Cellular and IoT Devices Testing, It’s perfect for anyone looking to test their device without having to worry about interference or other environmental factors. Provides high shielding >90dB against all types of EMI /RFI, especially for modern wireless communication technologies such as 3G, 4G, 5G LTE, Wi-Fi 802.11 - all series, Wi-Max and Bluetooth etc. The product can be fully customized to your specific requirements by designing the I/O connections with any number of interchangeable plug-in RF modules. Feel free to contact us for more details and we will be happy to provide you with a tailor-made testing solution that best suits your testing requirements.

Exterior (H x W x D)
22" (H) x 30" (W) x 30" (D)
Interior (H x W x D)
20" (H) x 28" (W) x 28" (D)
In Stock / Custom Built to Spec
Response in 2h
Call Consultation
Fast Turnaround • Custom I/O & Absorber • ISO 9001:2015
LBX5700 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
30"(EXTERIOR WIDTH)22"(EXTERIORHEIGHT)FRONT VIEW30"(EXTERIOR DEPTH)SIDE VIEW30"(EXTERIOR WIDTH)30"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 30" (W) × 22" (H) × 30" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX5700 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
28"(INTERIOR WIDTH)20"(INTERIORHEIGHT)INTERIOR FRONT VIEW28"(INTERIOR DEPTH)INTERIOR SIDE VIEW28"(INTERIOR WIDTH)28"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 28" (W) × 20" (H) × 28" (D)RF Pyramidal Microwave Absorber Lining Boundary
