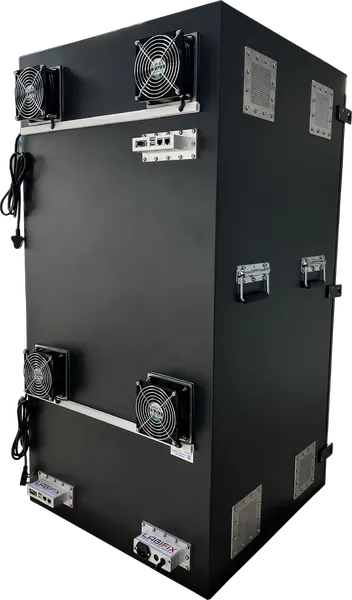

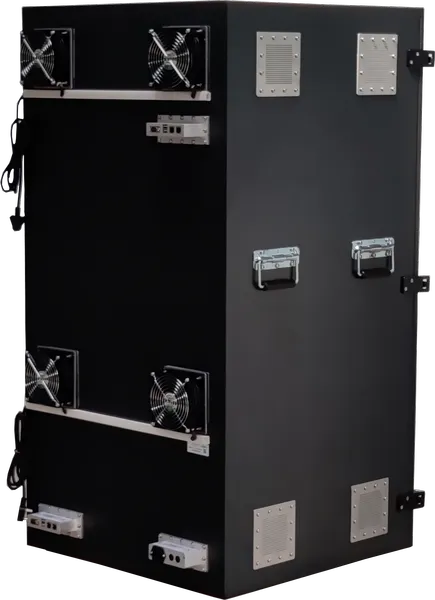

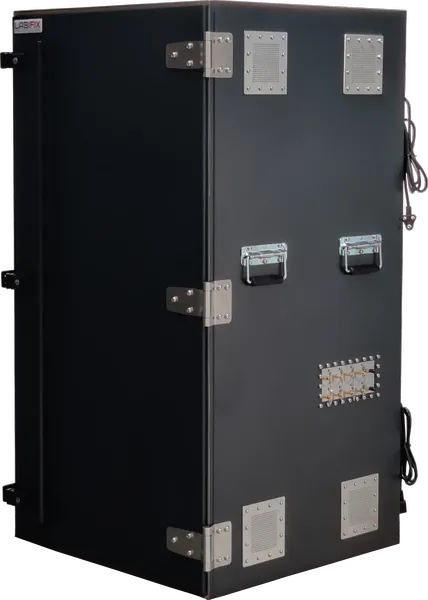

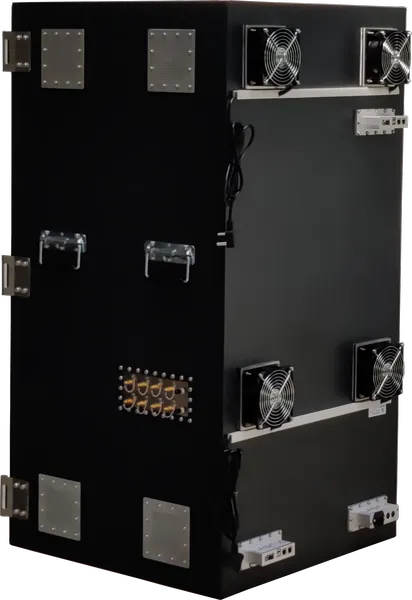

LBX7100 5G mmWave Test Enclosure LabiFix RF Shield Box - View 1 of 7
Industrial Spec View
IEEE-299 Certified
•
MIL-STD-285
•
CE Marked (RED)
RF SHIELD BOX

LBX7100 RF Shield Box

LBX7100 RF Shielded Test Enclosure is the perfect solution to your EMI, RFI and communication testing requirements. This shielded cabinet provides high EMC/RFI shielding against RF interferences, even in sensitive RF environments, allowing you to complete your wireless device testing in an industry relevant environment. Choose from the endless possibilities of design variations to suit your specific needs. The interior space of shielded enclosure allows for larger devices to be tested while still providing high shielding effectiveness. Enabling engineers to analyze and achieve various wireless device testing objectives in the R&D, Development and production environment. They can be customized to any sizes and configurations to accommodate various testing requirements which indeed effectively shield against unwanted RF interference.

Exterior (H x W x D)
48" (H) x 25" (W) x 25" (D)
Interior (H x W x D)
46" (H) x 23" (W) x 23" (D)
In Stock / Custom Built to Spec
Response in 2h
Call Consultation
Fast Turnaround • Custom I/O & Absorber • ISO 9001:2015
LBX7100 — Exterior Mechanical Dimensions (3-View Orthographic CAD)
Units:
25"(EXTERIOR WIDTH)48"(EXTERIORHEIGHT)FRONT VIEW25"(EXTERIOR DEPTH)SIDE VIEW25"(EXTERIOR WIDTH)25"(EXTERIORDEPTH)TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Exterior Envelope: 25" (W) × 48" (H) × 25" (D)Labifix Precision Engineering • 3rd Angle Orthographic Projection
LBX7100 — Interior DUT Working Chamber Dimensions (RF Absorber Cavity)
Units:
23"(INTERIOR WIDTH)46"(INTERIORHEIGHT)INTERIOR FRONT VIEW23"(INTERIOR DEPTH)INTERIOR SIDE VIEW23"(INTERIOR WIDTH)23"(INTERIORDEPTH)INTERIOR TOP VIEWDIMENSIONS ARE IN INCHES (IN)
Interior Working Volume: 23" (W) × 46" (H) × 23" (D)RF Pyramidal Microwave Absorber Lining Boundary
